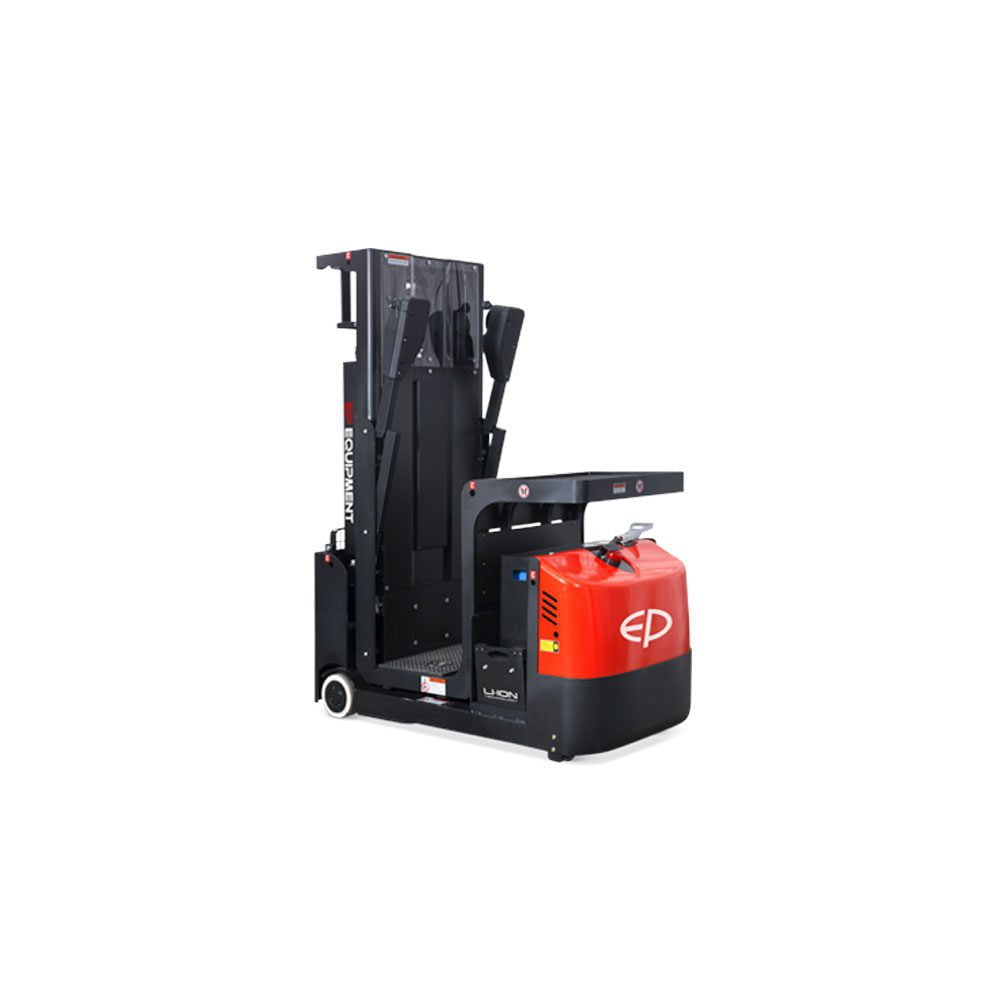

EP JX1 Electric Vertical Order Picker

Electric Vertical Order Pickers

JX1 Lithium-ion

205A/24V
3000mm (Duplex Mast)
90kg

The EP JX1 vertical order picker helps you increase productivity in your warehouse while reducing the risk of injuries. Buy online

More Information
Purchase From: £16,250.00 Exc. VAT
01600 800 800 WhatsApp Email
The JX1 vertical order picker helps you increase productivity in your warehouse while reducing the risk of injuries. With its heavy duty, stable mast and a large working platform, the JX1 order picker will give your employees the safety they need to work efficiently.

Designed for High-Volume, Medium-Level Order Picking

Built specifically for warehouse picking operations.
Capable of reaching shelf levels up to 6.3m picking height (4.8m platform height).
Ideal for e-commerce fulfillment, retail distribution, and spare parts warehouses.

Narrow-Aisle Specialist

Very compact chassis: 1590 × 1500 × 800 mm
Tight 1385 mm turning radius
Perfect for narrow warehouse aisles and high-density storage environments.

Strong & Steady Construction

Reinforced mast, stable chassis layout, and balanced load distribution.
Smooth, precise lifting with 2.2 kW lift motor.

Flexible Battery Configuration

Standard: 24V 224Ah AGM battery (maintenance-free)

Optional:
210Ah / 270Ah / 280Ah lead-acid
205Ah Li-ion
Simple battery exchange system for multi-shift use.

Comfortable & Safe Operator Environment

Large protected standing compartmen
Electronic steering
Electromagnetic braking
Optional safety features:
Blue light
Warning lights
Door & drop alarm buzzers
Guide wheel
Two-feet safety switch system (optional)

Quiet, Efficient Warehouse Operation

Low noise at 74 dB(A)
Travel speed: 5.5 km/h
Lift speed: 0.17–0.21 m/s
Lowering speed: 0.26–0.35 m/s

Manufacturer

EP Equipment

Model

JX1 (3200) / JX1 (4100) / JX1 (4880)

Fuel Type

Electric — 24V AGM (224Ah standard)

Optional:

  • 210Ah / 270Ah / 280Ah Lead-acid
  • 205Ah Li-ion

Capacity

227 / 137 / 136 kg (depends on lifting zone Q1/Q2/Q3)

Lift Height

Platform lift height:
4030 mm (JX1–3200)
4930 mm (JX1–4100)
5710 mm (JX1–4880)
Max working height: up to 6.75 m (mast extended)

Mast Type

Single-stage vertical mast (all models)

Health & Safety

Electromagnetic service brake
Electronic steering
Optional:
Safe hook
Traction pin
Blue light
Warning light combinations
Drop buzzer / door alarm / dip buzzer
Running buzzer / reversing buzzer
Guide wheel
Two-feet safety switch
Castor wheels (standard)
Battery side-pull system (standard)

Additional Info

Travel speed: 5.5 / 5.5 km/h
Lift speed: 0.17 / 0.21 m/s
Lowering speed: 0.35 / 0.26 m/s
Turning radius: 1385–1450 mm
Service weight:
1160 kg (3200)
1340 kg (4100)
1530 kg (4880)
Ground clearance: 50 mm
Tyres: PU / Solid rubber
Drive motor: 1.7 kW
Lift motor: 2.2 kW
Battery exchange side-pull standard
Optional internal/external chargers depending on battery configuration
JX1_Brochure

Download our product specification for more in-depth product information

What is the weight capacity of the JX1 pallet truck?

The JX1 pallet truck is designed to handle a maximum load capacity of 2,500 kg (5,500 lbs), making it suitable for a wide range of warehouse and industrial tasks.

Does the JX1 pallet truck come with an electric motor for easy operation?

Yes, the JX1 pallet truck is equipped with a powerful electric motor, offering ease of use and reducing the manual effort required for lifting and transporting loads.

Is the JX1 pallet truck suitable for use in narrow aisles?

The JX1 uses a 24V lithium-ion battery, which offers long-lasting performance. A fully charged battery typically provides several hours of continuous operation, depending on the load and usage conditions.

How does the JX1 pallet truck ensure safety during operation?

The JX1 is equipped with safety features such as an emergency stop button, anti-slip handlebars, and an automatic speed reduction when turning. These features ensure safe operation in busy environments.

Hire a truck

Whether you're moving equipment, making deliveries, or tackling a big job—iLift offers reliable, well-maintained trucks ready when you are. Choose from flexible rental options with no hidden fees.

We make it easy: fast bookings, clear pricing, and a friendly team to help you pick the right vehicle.

Get on the road today—call now or book online in minutes!

Rent now

iLift Recommends

We Think You May Also Like

More information

Application.

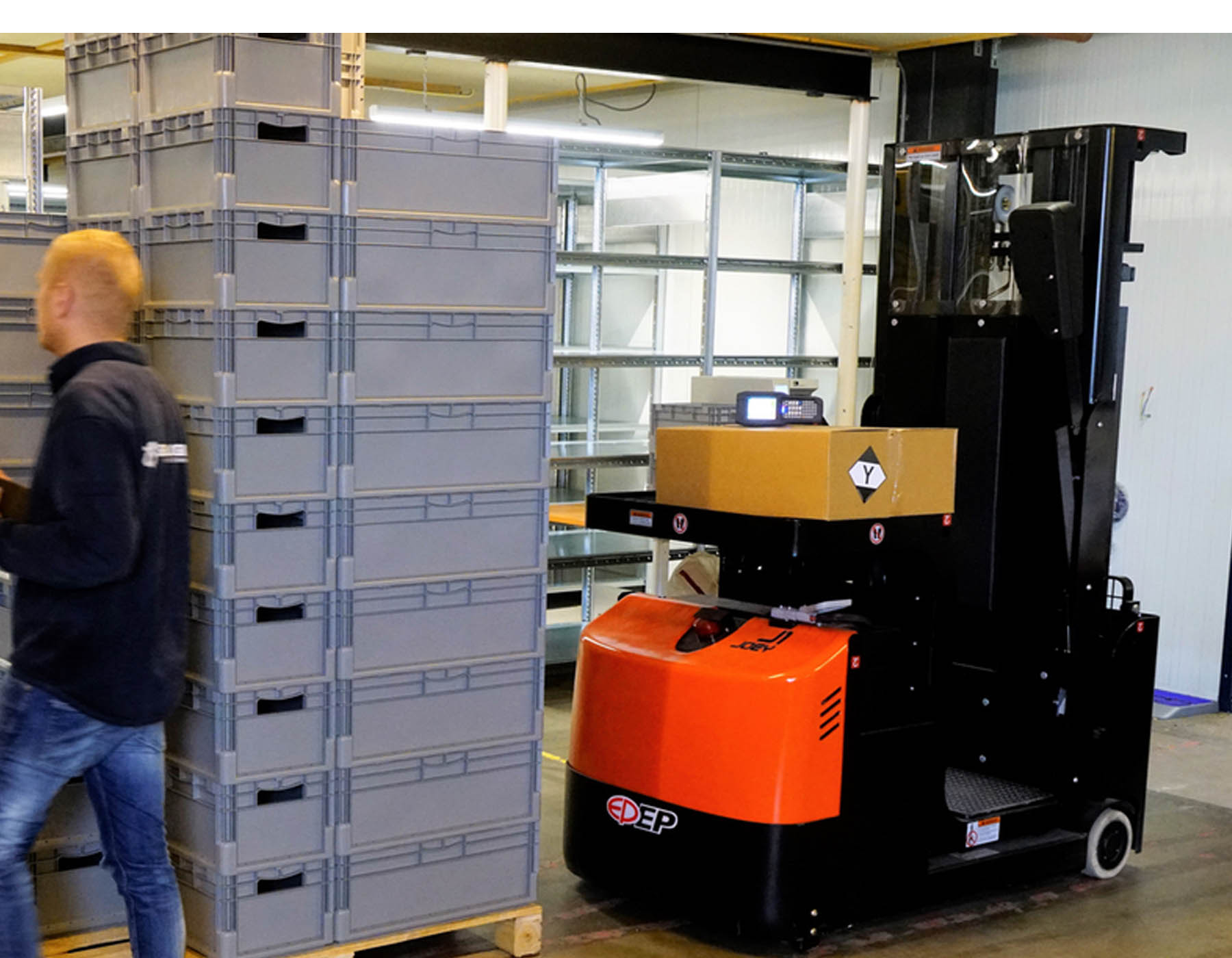

The JX1 vertical order picker helps you increase productivity in your warehouse while reducing the risk of injuries. With its heavy duty, stable mast and a large working platform, the JX1 order picker will give your employees the safety they need to work efficiently.
