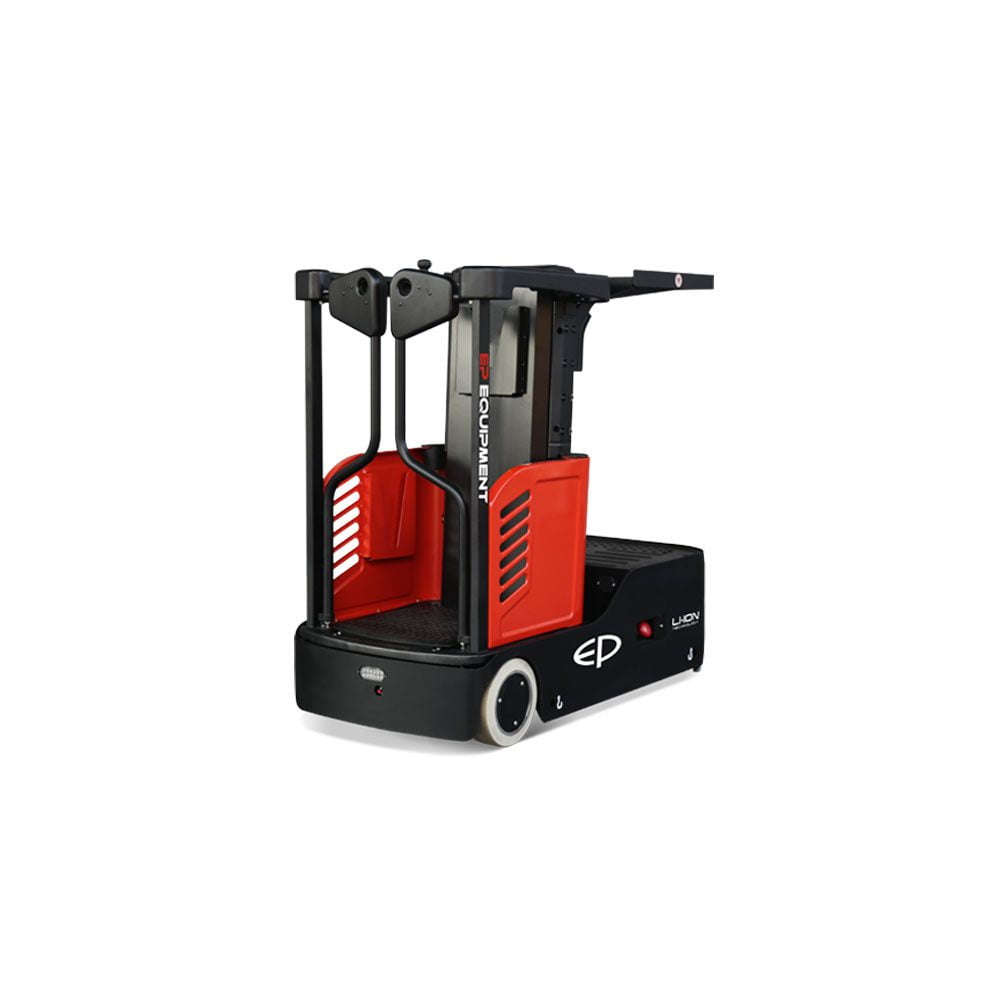

EP JXO Electric Vertical Order Picker

Electric Vertical Order Pickers

JX0 Lithium-ion

135A/24V
3000mm (Duplex Mast)
90kg

The JX0 from EP Equipment is the new generation of vertical order pickers, designed to increase efficiency in your warehouse. Explore our range today.

More Information
Purchase From: £12,700.00 Exc. VAT
01600 800 800 WhatsApp Email
The JX0 from EP Equipment is the new generation task support vehicle. The main advantage compared to its competitors is the extremely stable mast and the intuitive user interface. It plays out its strengths in smaller volume order picking as well as the retail environment. JX0 will reduce injuries in the workplace and increase the efficiency in the warehouse.

Compact, Ultra-Maneuverable Design

Extremely small footprint: 1365 × 1440 × 750 mm
Tight 1260 mm turning radius makes it perfect for narrow aisles, retail, and back-of-house operations.
Light and flexible frame for effortless indoor maneuvering.

High Working Height for Picking Tasks

Maximum platform height: 2.99 m
Total working height (stand height elevated): 3000 mm
Ideal for shelf restocking, maintenance tasks, retail picking, and mezzanine-level work.

AGM Battery as Standard, Li-Ion Optional

Standard: 24V / 120Ah AGM (maintenance-free)
Optional: 24V / 120Ah Li-ion battery
Internal chargers available depending on battery type (page 3).

Stable & Safe Picking Platform

Safety-focused design with electronic steering and electromagnetic braking.
Large platform railings and stable chassis for safe elevated operation.

Strong Performance for a Compact Machine

Travel speed: 6 / 6.5 km/h (laden/unladen)
Lift speed: 0.22 / 0.27 m/s
Gradeability: 5% / 8%

Wide Range of Options

Blue spot safety light
Buzzer options (drop, running, reversing)
Guide wheel
Optional safety switch (both feet requirement)
Li-ion upgrade & 30A internal charger
Castor wheels (standard)

Quiet, Efficient Operation

Low noise: 60 dB(A)
Suitable for environments where quiet operation is required — retail, stores, hospitals, workshops.

Manufacturer

EP Equipment

Model

JX0

Fuel Type

Electric — 24V AGM 120Ah (standard) / 24V 120Ah Li-ion (optional)

Capacity

90 / 110 / 136 kg

(depends on lifting zone Q1 / Q2 / Q3)

Lift Height

3615 mm (mast lift height)

3000 mm platform stand height

Mast Type

Single lifting mast (standard)

Health & Safety

Electromagnetic service brake
Electronic steering
Drop / running / reversing buzzer options
Blue spot safety light (optional)
Castor wheels for stability (standard)
Optional safety switch: must stand with both feet
Low noise level (60 dB)
Stable elevated platform with protective structure

Additional Info

Travel speed: 6 / 6.5 km/h
Lift speed: 0.22 / 0.27 m/s
Lowering speed: 0.31 / 0.25 m/s
Turning radius: 1260 mm
Ground clearance: 35 mm
Service weight: 800 kg
Tyres: Polyurethane / Solid rubber
Drive motor: 0.65 kW
Lift motor: 2.2 kW
Optional 24V-15A or 24V-30A internal chargers depending on battery type
No overhead guard (standard)
Very quiet & suitable for customer-facing areas
JX0_Brochure

Download our product specification for more in-depth product information

What is the maximum weight capacity of the JXO pallet truck?

The JXO pallet truck is designed to handle loads up to 2,500 kg (2.5 tons), making it suitable for most standard warehouse and industrial applications.

How long does it take to charge the JXO pallet truck fully?

The JXO pallet truck typically takes around 4 to 6 hours to fully charge, depending on the charger and battery condition, providing a full day's operation once charged.

What are the key features of the JXO pallet truck?

The JXO pallet truck comes equipped with a powerful electric motor, ergonomic handle, high-strength steel construction, a clear display for battery status, and safety features like anti-roll-back and emergency stop buttons.

hat is the lifting height range of the JXO pallet truck?

The JXO pallet truck has a lifting height range of 85 mm to 200 mm, making it ideal for transporting standard pallets and working in tight spaces.

Hire a truck

Whether you're moving equipment, making deliveries, or tackling a big job—iLift offers reliable, well-maintained trucks ready when you are. Choose from flexible rental options with no hidden fees.

We make it easy: fast bookings, clear pricing, and a friendly team to help you pick the right vehicle.

Get on the road today—call now or book online in minutes!

Rent now

iLift Recommends

We Think You May Also Like

More information

Application.
With its low self weight and compact design it was designed for narrow aisles as well as the retail environment. The all new, JX0 will increase safety and efficiency wherever goods have to be picked or stored in shelfes and racks. Work injuries during maintenance work in larger hights can be reduced compared to ladders due to the high stability, the possibility to reposition while man up and the large driver & storage compartment.
Front angled view of a red and black EP ESl122 electric stacker truck, featuring tall lifting masts and a compact handle design, positioned on a white background
  • Front angled view of a red and black EP ESl122 electric stacker truck, featuring tall lifting masts and a compact handle design, positioned on a white background
  • Front angled view of a red and black EP ESl122 electric stacker truck, featuring tall lifting masts and a compact handle design, positioned on a white background
  • Front angled view of a red and black EP ESl122 electric stacker truck, featuring tall lifting masts and a compact handle design, positioned on a white background
  • Front angled view of a red and black EP ESl122 electric stacker truck, featuring tall lifting masts and a compact handle design, positioned on a white background
  • Front angled view of a red and black EP ESl122 electric stacker truck, featuring tall lifting masts and a compact handle design, positioned on a white background

Product video

The JX0.

Learn more about the key features and benefits of the JX0 by watching the product video attached. If you would like a quote please get in touch.
