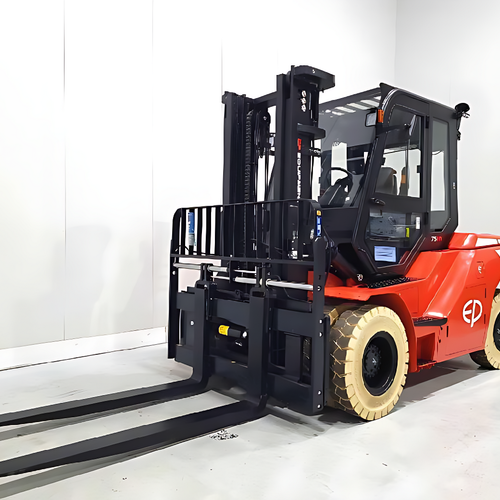

EFL703-HV-6

309V/304Ah

3000mm

7500kg

The EFL503–703HV Series is purpose-built for industries that demand strength, reliability, and safety in extreme working conditions — such as steel production, construction materials, ports, and heavy logistics. Its dual-wheel front axle enhances traction and balance when transporting bulky materials on uneven or slipp

More Information

Purchase From: £0.00 Exc. VAT

01600 800 800 WhatsApp Email

The EFL503–703HV Series is purpose-built for industries that demand strength, reliability, and safety in extreme working conditions — such as steel production, construction materials, ports, and heavy logistics. Its dual-wheel front axle enhances traction and balance when transporting bulky materials on uneven or slippery ground. With its fast 1C charging capability and long battery life (up to 4000 cycles), it is the ideal solution for multi-shift operations that require continuous power and minimal downtime.

High-Voltage Li-Ion Power System	309V Lithium-Ion battery delivers much stronger power output. Up to 4000 charging cycles for long service life. High-voltage = 1.5–2× performance improvement over low-voltage models
Fast 1C Charging (1–1.2 hours)	Compatible with vehicle-grade high-voltage chargers. Minimal downtime — ideal for multi-shift operations
High Performance for Heavy Industries	Designed for steel, construction materials, ports, heavy logistics. Excellent acceleration, travel speed (25–26 km/h), and gradeability (30% laden/unladen). Strong power from large PMSM motors (60 kW drive, 2×27.8 kW lift)
Dual Front Wheels for Stability & Traction	Standard dual-wheel front axle improves: Stability with heavy loads Grip on uneven/slippery surfaces Tyre lifespan
Advanced Safety Systems	Over-speed alarm (adjustable) Turn speed control Battery/motor protections including overheat, short-circuit, overcharge Hydraulic mast buffering for smooth lifting/lowering VCU monitoring (Vehicle Control Unit) for real-time safety management
All-Weather Outdoor Operation	IPX4 overall protection (rain, puddles, wet conditions) IP67 protection for high-voltage component Cold-weather charging assistance with battery heating
Low Maintenance Design	Fewer battery cells due to high-voltage architecture PMSM motors (brushless) mean fewer wear parts Long battery lifespan reduces replacement frequency
Operator Comfort Options	Suspension seat options (including Grammer MSG65-531) Full/half cabin options Reversing camera & radar LED lighting packages

Manufacturer	EP Equipment
Model	EFL703-HV-6
Fuel Type	Electric – 309V Lithium-Ion Battery
Side Shift	Hook-on sideshift (optional) Fork positioner with sideshift (optional)
Lift Height	3000 mm (standard mast)
Capacity	7000 kg @ 608.5 mm load centre
Mast Type	Standard 2-stage Mast (3000 mm) Other masts available up to 7000 mm, including Free-Lift options.
Health & Safety	Turn speed control Over-speed alarm (adjustable) Multiple battery & motor protections Hydraulic mast buffering system IPX4 overall weather protection IP67 protection for high-voltage components Mechanical parking brake + hydraulic service brake Rear grab handle with horn (optional)
Additional Info	High-voltage 309V Li-ion system with 1C fast charging (full charge in 1–1.2 hours) PMSM drive system for high performance, strong acceleration & superior gradeability Suitable for heavy industries: steel production, construction materials, ports, logistics Dual front wheels for added stability on uneven/slippery ground Long battery life: up to 4000 cycles Travel speed: 25–26 km/h laden/unladen Lift speed: 0.51–0.53 m/s Lowering speed: 0.48–0.42 m/s Fork dimensions: 60 × 150 × 1220 mm Service weight: 9950 kg

datasheet-EFL703-HV-6

Download our product specification for more in-depth product information

Hire a truck

Whether you're moving equipment, making deliveries, or tackling a big job—iLift offers reliable, well-maintained trucks ready when you are. Choose from flexible rental options with no hidden fees.

We make it easy: fast bookings, clear pricing, and a friendly team to help you pick the right vehicle.

Get on the road today—call now or book online in minutes!

Rent now

iLift Recommends

We Think You May Also Like

More information

Application.

The EFL503–703HV Series embodies EP’s innovation in sustainable heavy lifting. Powered by a 309 V high-voltage LFP battery, it provides up to 15% energy savings compared with traditional AC systems, while maintaining strong torque and rapid acceleration. Its high-voltage PMSM drive (60 kW + 2× 27.8 kW lift motors) ensures consistent performance and smoother control across long operating cycles. A triple cooling system — dual water cooling (for battery and motor) and oil cooling (for hydraulics) — keeps all systems within optimal temperature range, ensuring reliability even under –20 °C to +40 °C conditions. Advanced VCU control enables precise speed and turning management, mast buffering, and comprehensive safety monitoring. Operators enjoy maximum comfort and safety with an ergonomic cabin, OPS safety system, fingertip control option, LED lighting, suspension seat, and optional A/C cabins. With zero emissions, low noise, and rugged build quality, the EFL503–703HV Series is a robust and eco-efficient choice for modern heavy-duty logistics.
