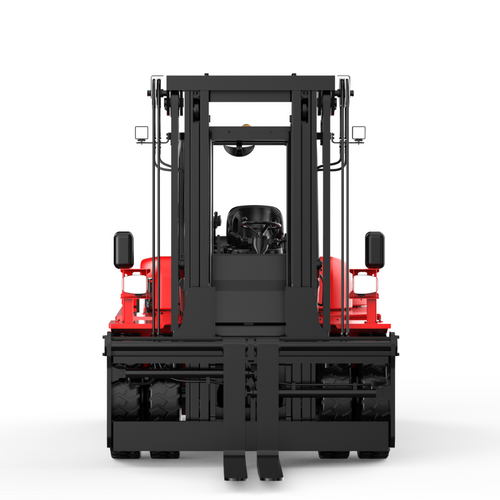

EFL1203-HV
EFL1203-HV
EFL1203-HV
EFL1203-HV

Electric Fork Trucks

EFL1203-HV

304Ah/309V
5000mm (Duplex Mast)
12000kg

12-ton electric forklift with 309V/304AH Li-ion battery. Low maintenance, eco-friendly, and energy-efficient. Flexible charging options. Buy online today!

More Information
£0.00 Exc. VAT
01600 800 800 WhatsApp Email

Versatile Usage: Built with a strong chassis for exceptional durability in logistics, construction, production, yard work, and more.

Heavy-Duty Support: With a load capacity of 12.0 tons and a fork positioner option, this electric forklift is ideal for demanding industrial environments..

High-Voltage Li-ion System for Maximum Power

High-voltage battery platform (544V) delivers exceptional lifting power & acceleration.

PMSM (Permanent Magnet Synchronous Motor) technology boosts energy efficiency and torque.

Supports high-demand industrial applications (ports, steel, heavy manufacturing).

Lithium Technology = Lower Operating Costs

Reduced charging costs and maintenance.
No engine noise, fumes, or vibration → cleaner, quieter operation.
Zero emissions for environmental compliance.

Multiple Customisation Options

Fully customisable forks, masts, fork carriages & hydraulic control types.
Tailored to heavy-duty applications requiring special attachments.
Optional cabins, cameras, warning systems, and more.

High Flexibility with Numerous Charging Options

DC fast-charging options available from 20 kW to 80 kW.
Suitable for multi-shift environments requiring rapid top-up charging.

Strong Outdoor & Heavy-Duty Design

Large pneumatic tyres front & rear.
High ground clearance (270 mm).
Designed for rugged sites and industrial yards.

Operator Comfort & Safety Features

Smooth, vibration-free electric operation for reduced fatigue.
Optional reversing radar & camera systems.
Optional blue lights, fog lamps, OPS safety system, and mast buffering.
Wide overhead guard and excellent visibility from elevated seating position.

High Performance for a 12-Ton Class Truck

Travel speed: 25 / 27 km/h (laden/unladen)
Gradeability: 20% / 25%
Lift speed up to 0.46 m/s unladen
Massive 60 kW drive motor + dual 48 kW lift motors (2×48 kW)

Manufacturer

EP Equipment

Model

EFL1203-HV

Fuel Type

Electric — High-Voltage Li-ion (544V / 150Ah standard)

Side Shift

Hydraulic distance-adjustment fork
Distance-adjustment fork with side shift
Integral side shifter

Capacity

12,000 kg

Lift Height

3000 mm (standard)

Optional mast heights available:

  • 3.5m / 4m / 4.5m / 5m / 5.5m / 6m / 6.5m

Mast Type

2-Stage Standard Mast (standard)
2-Stage Free-Lift Mast (optional)
3-Stage Free-Lift Mast (optional)

Health & Safety

OPS system (travel + hydraulic OPS)
Optional reversing radar & camera
Optional speed alarm & turn-speed limit
Hydraulic service brake
Mechanical parking brake
Mast work lights (optional)
Blue safety lights (rear / left & right / 3-way)
Strobe / rotating warning lights
Overhead guard or full cabin with A/C (optional)
Mast upper & lower buffering (optional)
Fire extinguisher mount available

Additional Info

Pneumatic tyres front & rear (solid optional)
Fork dimensions: 88 × 175 × 1370 mm
Drive motor: 60 kW
Lift motors: 2 × 48 kW
Travel speed: 25 / 27 km/h (laden/unladen)
Gradeability: 20% / 25%
Turning radius: 4290 mm
Service weight: 15,500 kg
High ground clearance: 270 mm
Wheelbase: 3000 mm
Custom accessories supported (fog lamps, blue lights, cabin types, hydraulic control options, etc.)
EFL1203-HV_EN_Brochure

Download our product specification for more in-depth product information

Can the EFL503-HV be used outdoors?

Yes, it is designed to operate in various weather conditions

What type of mast options are available for the EFL503-HV?

Various mast configurations can be selected depending on lift height and application needs

How do I manage the battery health of the EFL503-HV?

Utilise the onboard battery management system (BMS) to monitor battery status and optimise charging practices

Is the EFL503-HV suitable for multi-shift operations?

Yes, with proper battery management and optional dual chargers, it can handle multiple shifts

Hire a truck

Whether you're moving equipment, making deliveries, or tackling a big job—iLift offers reliable, well-maintained trucks ready when you are. Choose from flexible rental options with no hidden fees.

We make it easy: fast bookings, clear pricing, and a friendly team to help you pick the right vehicle.

Get on the road today—call now or book online in minutes!

Rent now

iLift Recommends

We Think You May Also Like

More information

Application.
EFL Series releases a new generation, EFL1203-HV, 12.0Ton Li-ion electric forklift, with rugged design and large ton capacity, challenging the traditional diesel forklift market. With this fork truck, you get the best of two worlds – the durability of IC trucks, and the modern design & sustainability of electric forklifts.
