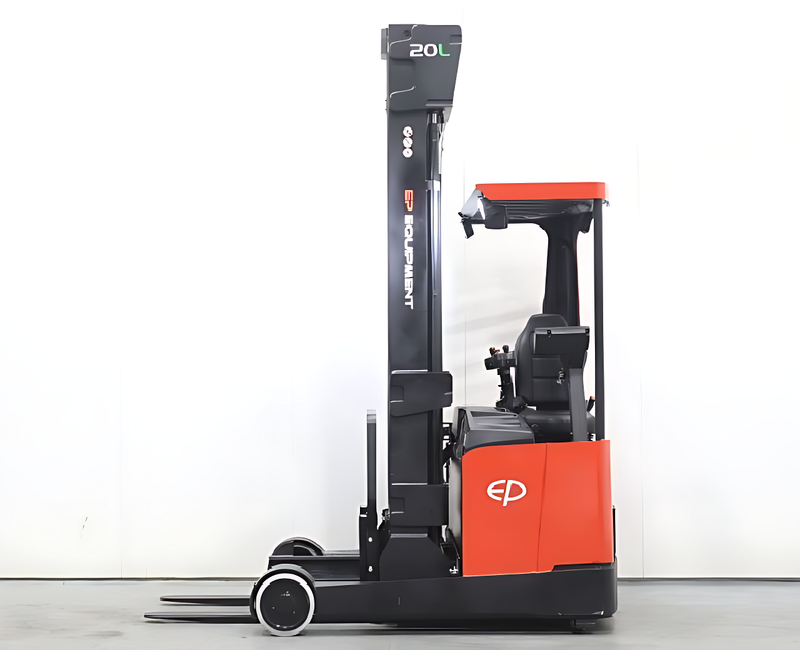

EP CQD16L Electric Reach Truck 1600kg – 6.5m Li-Ion
EP CQD16L Electric Reach Truck 1600kg – 6.5m Li-Ion
EP CQD16L Electric Reach Truck 1600kg – 6.5m Li-Ion
EP CQD16L Electric Reach Truck 1600kg – 6.5m Li-Ion
EP CQD16L Electric Reach Truck 1600kg – 6.5m Li-Ion

Electric Reach Trucks

EP CQD16L Electric Reach Truck 1600kg – 6.5m Li-Ion

360A/48V
6500mm (Triplex Mast)
1600kg , 2000kg

EP CQD16L electric reach truck: 1,600kg, 6.5m triplex mast, Li-Ion. Precise, stable high-level stacking in narrow aisles. Enquire for price.

More Information
£0.00 + VAT
£0.00 inc. VAT

The EP CQD16L is a 1,600 kg Li-Ion electric reach truck offering precise, stable stacking up to a 6,500 mm triplex mast. Built on EP's reach-truck engineering, its compact design and strong visibility support safe, efficient high-level storage in narrow-aisle warehouses.

Outstanding Visibility for Safer, Faster Stacking
  • Compact Li-ion battery improves forward visibility.
  • Offset hydraulic oil tube routing for a clearer mast view.
  • Ideal for high-rack environments and precise pallet handling.

Powerful Li-ion Battery System (48V / 360Ah)

Maintenance-free Li-ion battery with CANBUS BMS for real-time cell monitoring.
Supports opportunity charging and fast external chargers (up to 200A).
Optional 560Ah pack for CQD20L

High Lifting Performance & 50% Better Stacking Efficiency

CQD16L: 11.75 kW lift motor
CQD20L: 20 kW lift motor
Upgrades reduce noise by 10 dB and energy consumption by 30%.
Lifting speeds up to 0.55 m/s (unladen).

High Stability at Maximum Heights

Low center of gravity + new I-beam mast design.
Maximum lift heights:
8000 mm (CQD16L)
12000 mm (CQD20L)

Electric Power Steering (EPS)

Full AC motors + EPS for smooth, accurate steering.
Consumes less power than hydraulic systems while maintaining familiar steering feel.

Full-Color Display for Better Control

Shows battery %, speed, error codes, and system diagnostics.

Optional Safety & Warehouse Features

Built-in sideshift
Blue safety lights
Area warning lights
Camera
Height indicator (standard on CQD20L)
OPS system
Cold-storage configuration
Fire extinguisher
Telematics

Manufacturer

EP Equipment

Model

CQD16L / CQD20L

Fuel Type

Electric — 48V Li-ion (360Ah standard)

Optional (CQD20L): 560Ah Li-ion

Side Shift

Optional:

  • Built-in sideshifter
  • External sideshifter

    (Also affects aisle width depending on mast configuration.)

Capacity

1600 kg (CQD16L)
2000 kg (CQD20L)

Lift Height

Standard mast (examples):

CQD16L: 6500 mm
CQD20L: 7500 mm

Optional masts:
Standard 2-stage: 2700–4300 mm
Free-lift 3-stage: up to 8000 mm (CQD16L) / 12000 mm (CQD20L)

Mast Type

2-Stage Standard Mast
3-Stage Free-Lift Mast
(Both with multiple lift height options)

Health & Safety

Electric Power Steering (EPS)
OPS operator presence system
Electromagnetic service & parking brake
Full-color display
Optional blue light
Optional warning lights
Optional camera
Optional height indicator (standard on CQD20L)
Cold-storage option
Fire extinguisher option
Telematics ready
LED front lights (6000K)

Additional Info

(CQD16L from page 4, CQD20L from page 5)

Travel speed:
CQD16L: 9 / 9.3 km/h
CQD20L: 10 / 11 km/h

Lifting speed:
CQD16L: 0.35 / 0.55 m/s
CQD20L: 0.38 / 0.55 m/s
Lowering speed: 0.38–0.55 m/s
Reach distance: 585–625 mm

Turning radius:
CQD16L: 1720 mm
CQD20L: 1770 mm

Tyres: PU front + PU load wheels
Battery weight: 350–465 kg
Seat: Suspension seat (standard)
Noise level: 75 dB(A)


Drive motors:
CQD16L: 4 kW
CQD20L: 7 kW
CQD1620L_English

Download our product specification for more in-depth product information

What does CQD16/20L stand for?

"CQD" represents the reach truck series from EP Equipment, while "16/20L" indicates the lifting capacity options, with 1600kg and 2000kg respectively.

What is the main application of the CQD16/20L?

It's designed for high-level stacking in large warehouses, particularly suitable for industries like logistics, food distribution, and textile manufacturing.

What is the lifting capacity of the CQD16/20L

vailable in two options: 1600kg (CQD16L) or 2000kg (CQD20L).
  • Black Apple logo on a white background
  • Kubota logo on an orange background
  • Chelsea Football Club logo with a blue lion holding a flag on a white background
  • Lidl logo on a blue background
  • P&G logo on a blue circular background
  • Sainsbury's logo in orange on a white background

Hire a truck

Whether you're moving equipment, making deliveries, or tackling a big job—iLift offers reliable, well-maintained trucks ready when you are. Choose from flexible rental options with no hidden fees.

We make it easy: fast bookings, clear pricing, and a friendly team to help you pick the right vehicle.

Get on the road today—call now or book online in minutes!

Rent now

iLift Recommends

We Think You May Also Like

More information

Application.
CQD16L/20L is of tremendous help when material handling involves numerous movements at height storage and in confine buildings for industries such as logistics, textile and home appliance manufacturing. With the compact structure, CQD16L/20L is the perfect tool for transportation and high lifting operation in medium to large warehouses, regardless of wide or narrow-aisle racking settings.
Red EP electric reach truck in a warehouse
  • Red EP electric reach truck in a warehouse
  • Red EP electric reach truck in a warehouse
  • Red EP electric reach truck in a warehouse
  • Red EP electric reach truck in a warehouse

Product video

The CQD16/20L.

Learn more about the key features and benefits of the CQD16/20L by watching the product video attached. If you would like a quote please get in touch.
