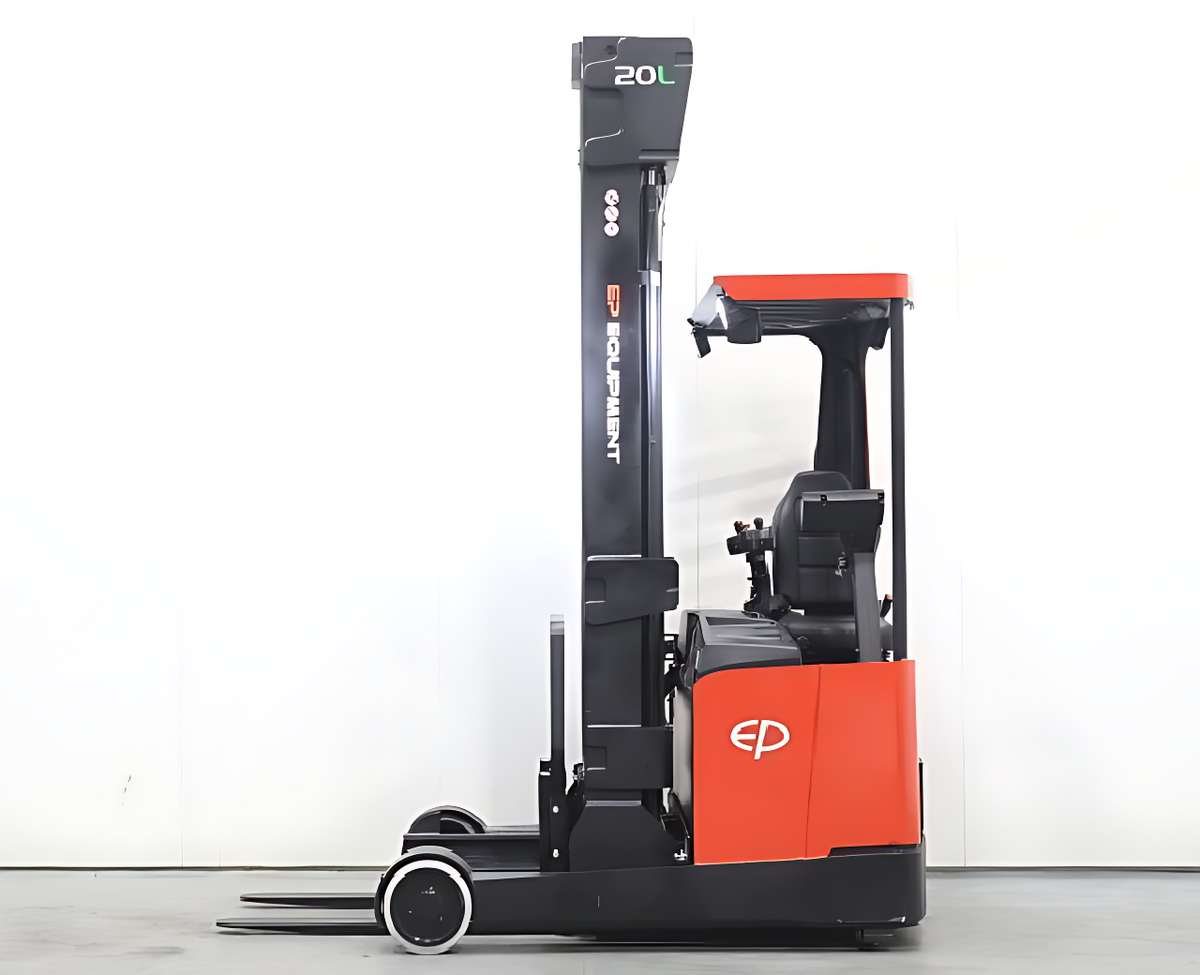

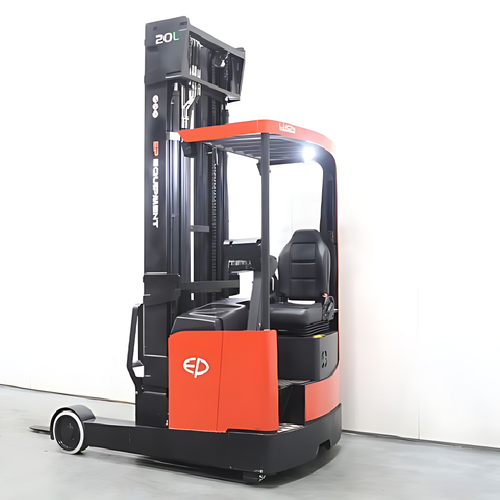

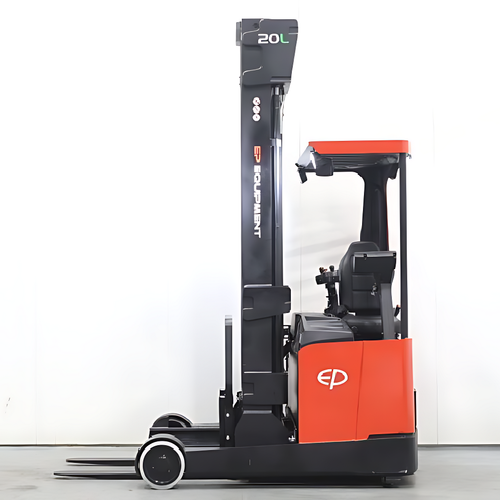

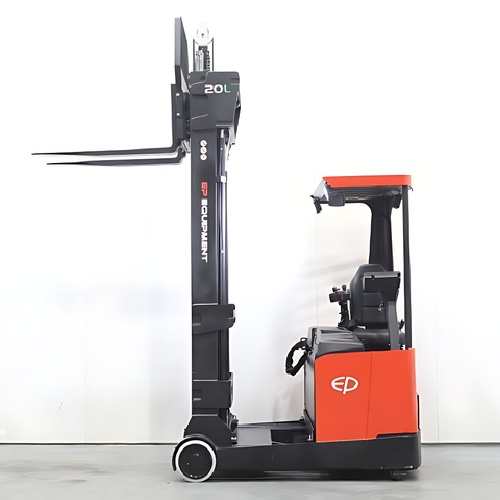

CQD16/20L
CQD16/20L
CQD16/20L
CQD16/20L
CQD16/20L

Electric Reach Trucks

CQD16/20L

360A/48V
6500mm (Triplex Mast) , 9000mm (Triplex Mast)
1600kg , 2000kg

Explore EP CQD16/20L electric reach trucks: 1600-2000kg capacities, lift up to 9000mm. Perfect for high stacking in large warehouses.

More Information
£0.00 Exc. VAT

Model:

CQD16L (1600kg)
CQD20L (2000kg)

Lift Height:

6500mm (Triplex Mast)
9000mm (Triplex Mast)

Built on reliable engineering tradition and EP expertise, the CQD series offers precise stacking, quiet operation and high stability. The compact design and upgrade functionality reinforce operation visibility and workplace safety. The CQD16L/20L is fully designed around all the advantages of EP Li-Ion technology.

Outstanding Visibility for Safer, Faster Stacking
  • Compact Li-ion battery improves forward visibility.
  • Offset hydraulic oil tube routing for a clearer mast view.
  • Ideal for high-rack environments and precise pallet handling.

Powerful Li-ion Battery System (48V / 360Ah)

Maintenance-free Li-ion battery with CANBUS BMS for real-time cell monitoring.
Supports opportunity charging and fast external chargers (up to 200A).
Optional 560Ah pack for CQD20L

High Lifting Performance & 50% Better Stacking Efficiency

CQD16L: 11.75 kW lift motor
CQD20L: 20 kW lift motor
Upgrades reduce noise by 10 dB and energy consumption by 30%.
Lifting speeds up to 0.55 m/s (unladen).

High Stability at Maximum Heights

Low center of gravity + new I-beam mast design.
Maximum lift heights:
8000 mm (CQD16L)
12000 mm (CQD20L)

Electric Power Steering (EPS)

Full AC motors + EPS for smooth, accurate steering.
Consumes less power than hydraulic systems while maintaining familiar steering feel.

Full-Color Display for Better Control

Shows battery %, speed, error codes, and system diagnostics.

Optional Safety & Warehouse Features

Built-in sideshift
Blue safety lights
Area warning lights
Camera
Height indicator (standard on CQD20L)
OPS system
Cold-storage configuration
Fire extinguisher
Telematics

Manufacturer

EP Equipment

Model

CQD16L / CQD20L

Fuel Type

Electric — 48V Li-ion (360Ah standard)

Optional (CQD20L): 560Ah Li-ion

Side Shift

Optional:

  • Built-in sideshifter
  • External sideshifter

    (Also affects aisle width depending on mast configuration.)

Capacity

1600 kg (CQD16L)
2000 kg (CQD20L)

Lift Height

Standard mast (examples):

CQD16L: 6500 mm
CQD20L: 7500 mm

Optional masts:
Standard 2-stage: 2700–4300 mm
Free-lift 3-stage: up to 8000 mm (CQD16L) / 12000 mm (CQD20L)

Mast Type

2-Stage Standard Mast
3-Stage Free-Lift Mast
(Both with multiple lift height options)

Health & Safety

Electric Power Steering (EPS)
OPS operator presence system
Electromagnetic service & parking brake
Full-color display
Optional blue light
Optional warning lights
Optional camera
Optional height indicator (standard on CQD20L)
Cold-storage option
Fire extinguisher option
Telematics ready
LED front lights (6000K)

Additional Info

(CQD16L from page 4, CQD20L from page 5)

Travel speed:
CQD16L: 9 / 9.3 km/h
CQD20L: 10 / 11 km/h

Lifting speed:
CQD16L: 0.35 / 0.55 m/s
CQD20L: 0.38 / 0.55 m/s
Lowering speed: 0.38–0.55 m/s
Reach distance: 585–625 mm

Turning radius:
CQD16L: 1720 mm
CQD20L: 1770 mm

Tyres: PU front + PU load wheels
Battery weight: 350–465 kg
Seat: Suspension seat (standard)
Noise level: 75 dB(A)


Drive motors:
CQD16L: 4 kW
CQD20L: 7 kW
CQD1620L_English

Download our product specification for more in-depth product information

What does CQD16/20L stand for?

"CQD" represents the reach truck series from EP Equipment, while "16/20L" indicates the lifting capacity options, with 1600kg and 2000kg respectively.

What is the main application of the CQD16/20L?

It's designed for high-level stacking in large warehouses, particularly suitable for industries like logistics, food distribution, and textile manufacturing.

What is the lifting capacity of the CQD16/20L

vailable in two options: 1600kg (CQD16L) or 2000kg (CQD20L).

Hire a truck

Whether you're moving equipment, making deliveries, or tackling a big job—iLift offers reliable, well-maintained trucks ready when you are. Choose from flexible rental options with no hidden fees.

We make it easy: fast bookings, clear pricing, and a friendly team to help you pick the right vehicle.

Get on the road today—call now or book online in minutes!

Rent now

iLift Recommends

We Think You May Also Like

More information

Application.
CQD16L/20L is of tremendous help when material handling involves numerous movements at height storage and in confine buildings for industries such as logistics, textile and home appliance manufacturing. With the compact structure, CQD16L/20L is the perfect tool for transportation and high lifting operation in medium to large warehouses, regardless of wide or narrow-aisle racking settings.

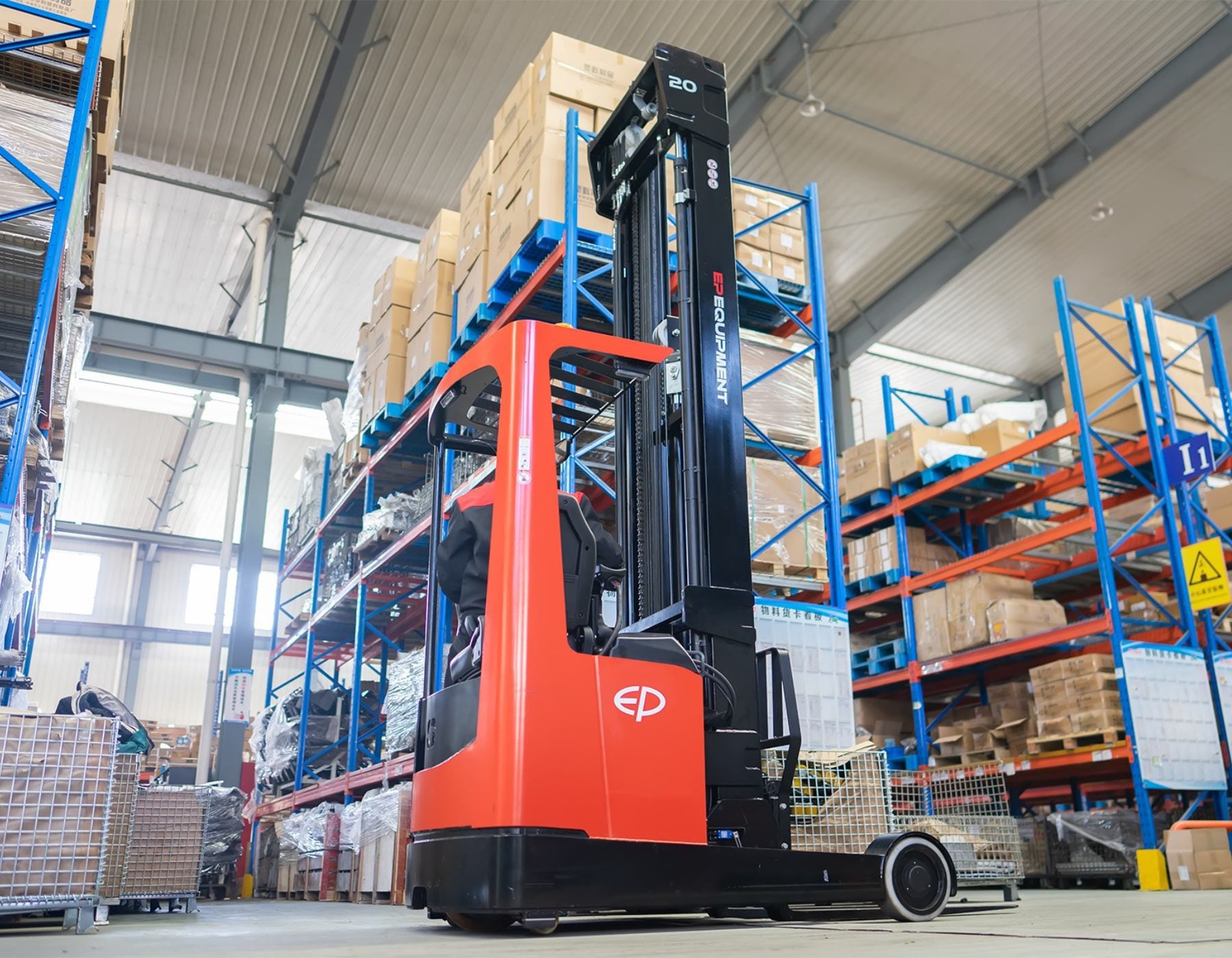

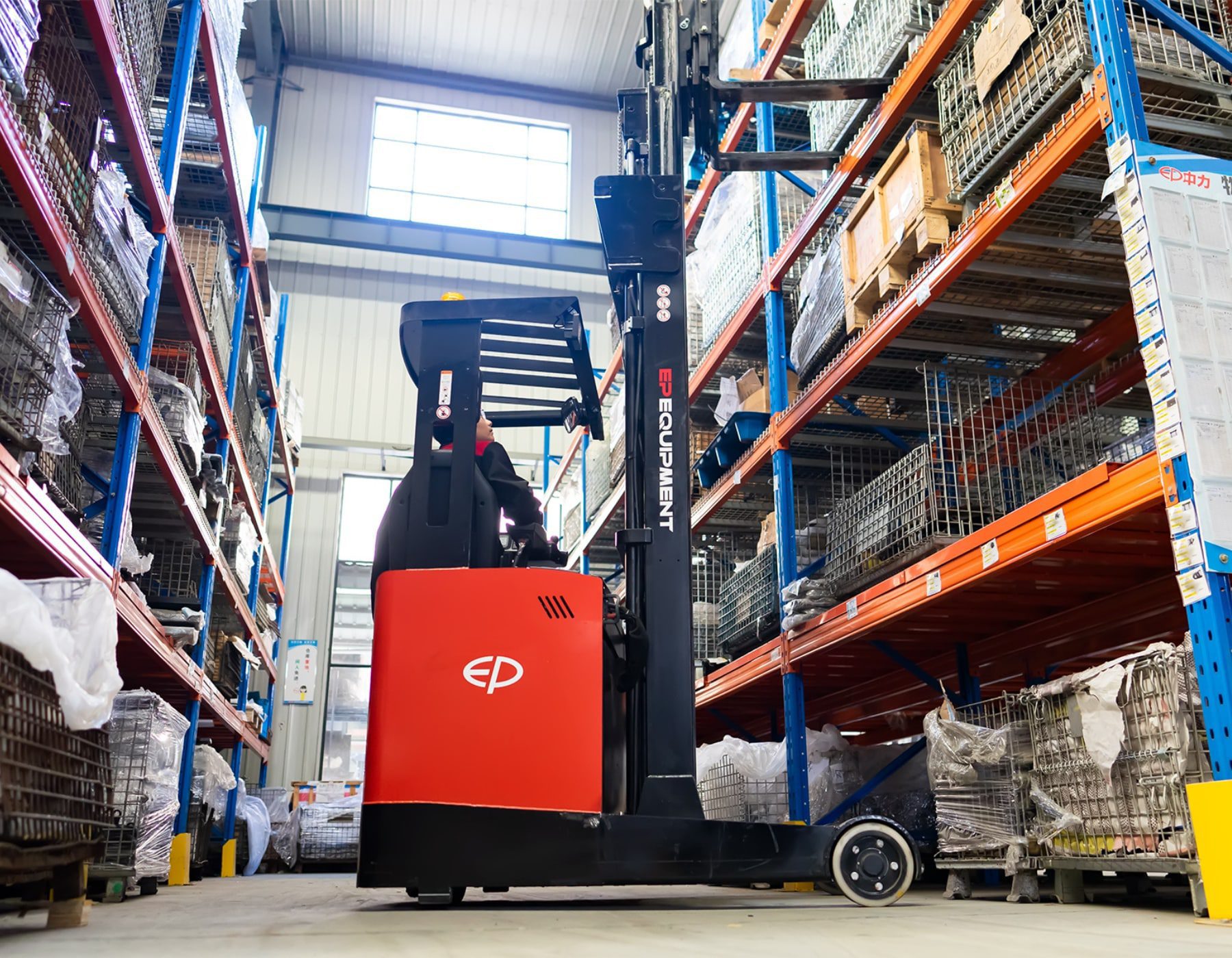

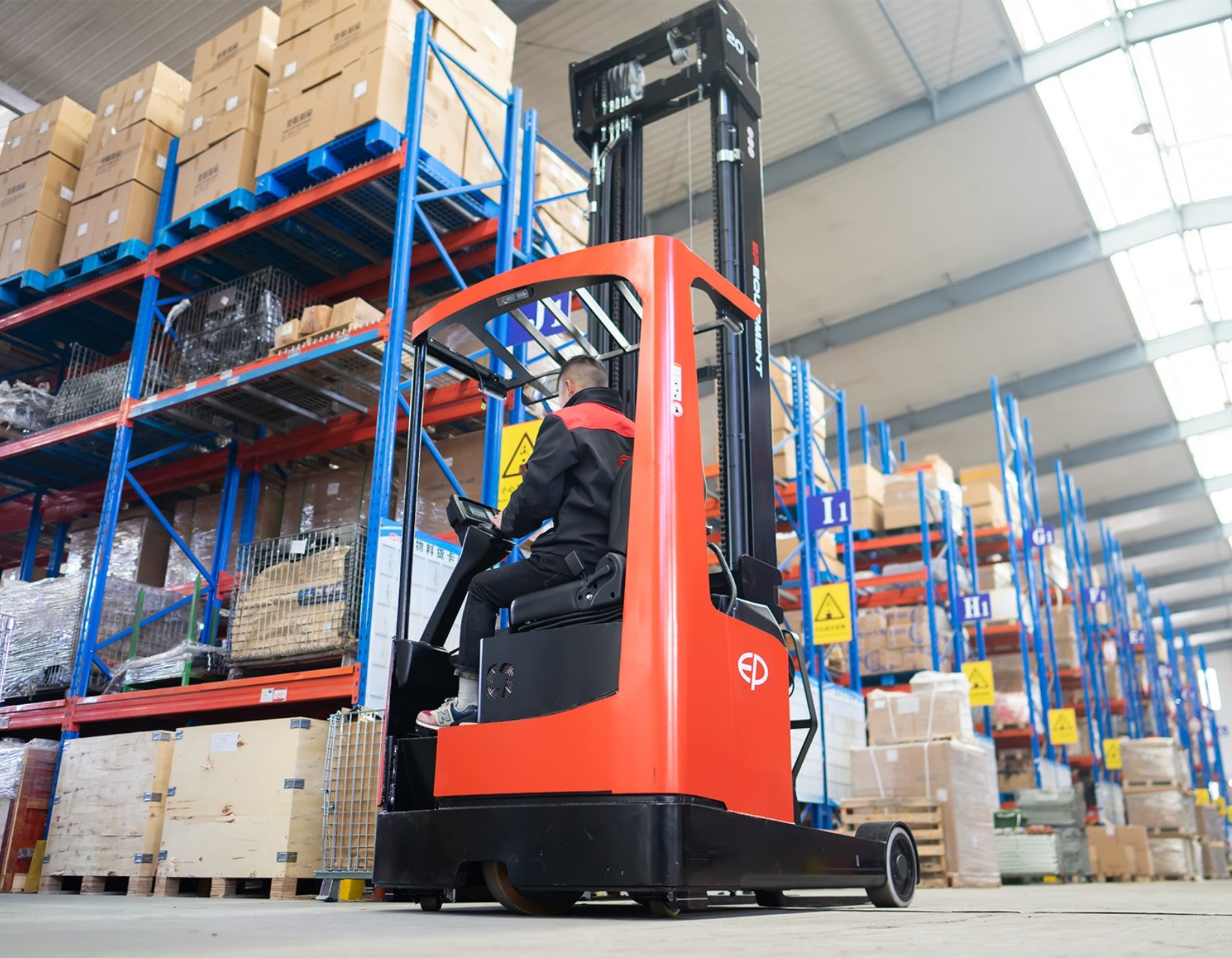

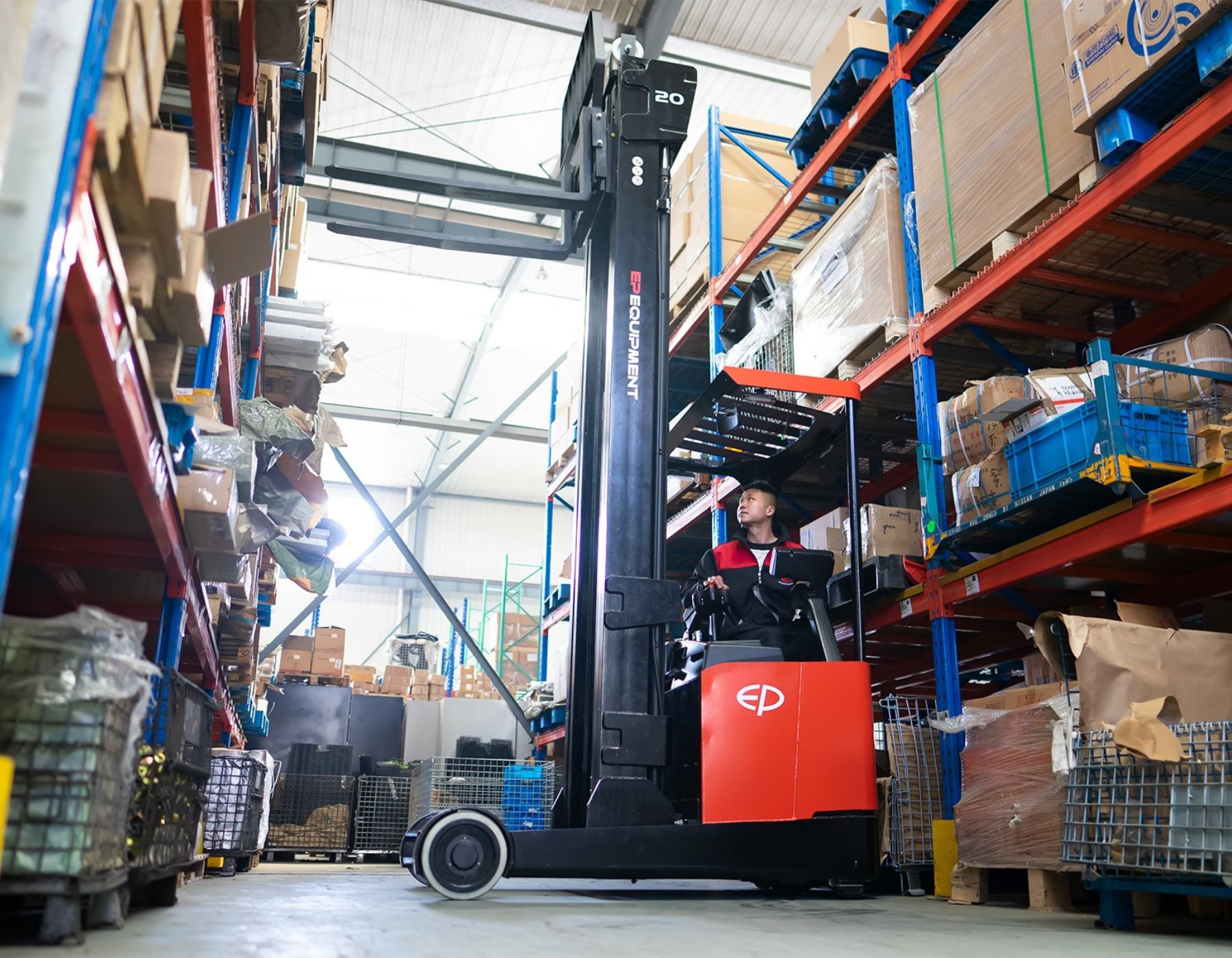

Red EP electric reach truck in a warehouse
  • Red EP electric reach truck in a warehouse
  • Red EP electric reach truck in a warehouse
  • Red EP electric reach truck in a warehouse
  • Red EP electric reach truck in a warehouse

Product video

The CQD16/20L.

Learn more about the key features and benefits of the CQD16/20L by watching the product video attached. If you would like a quote please get in touch.
