Electric Fork Trucks

TDL201

360A/48V
3300mm (Duplex Mast) , 4800mm (Triplex Mast) , 6000mm (Triplex Mast)
2000kg

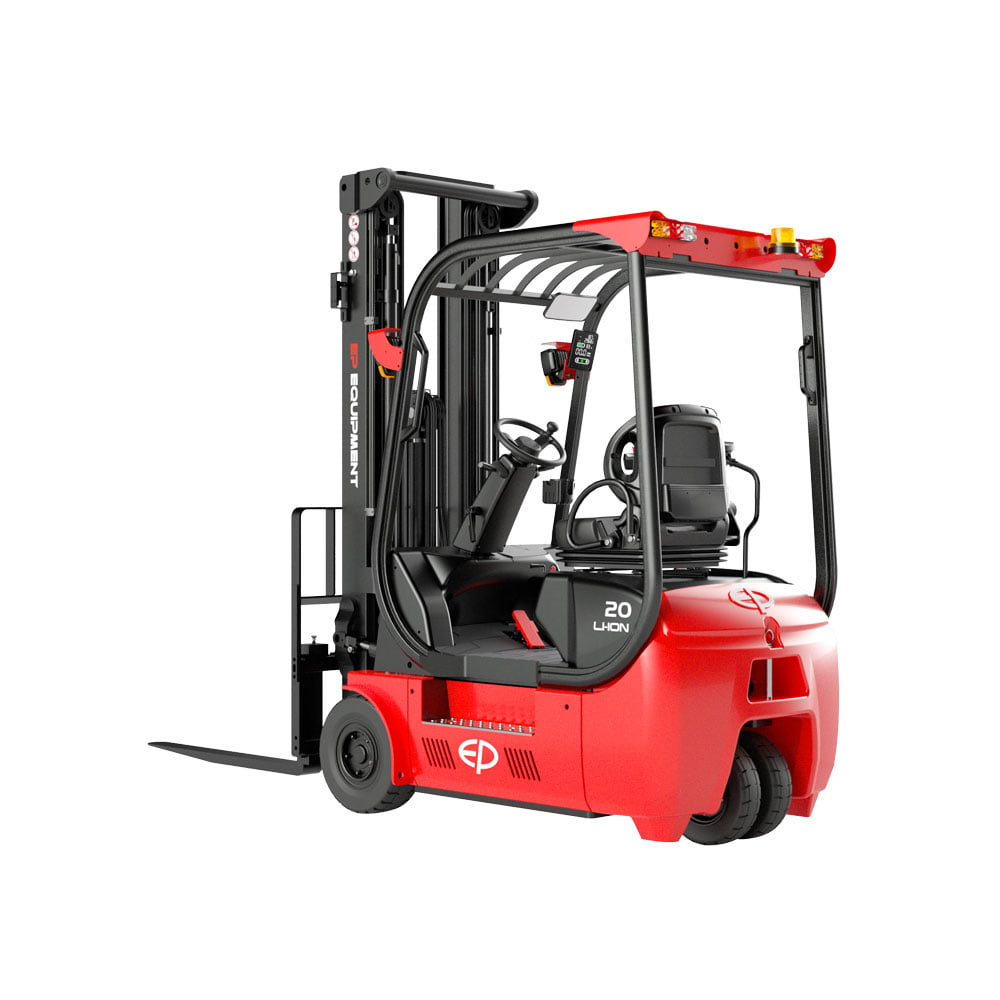

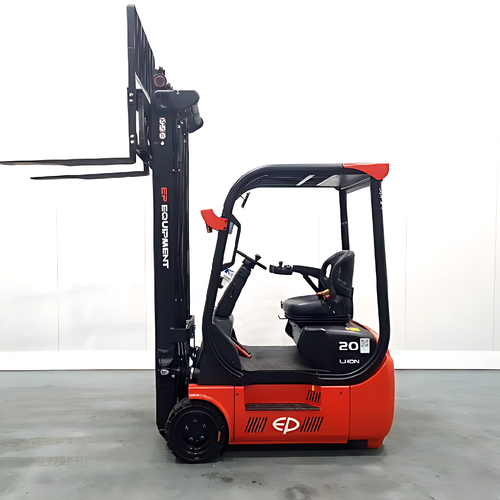

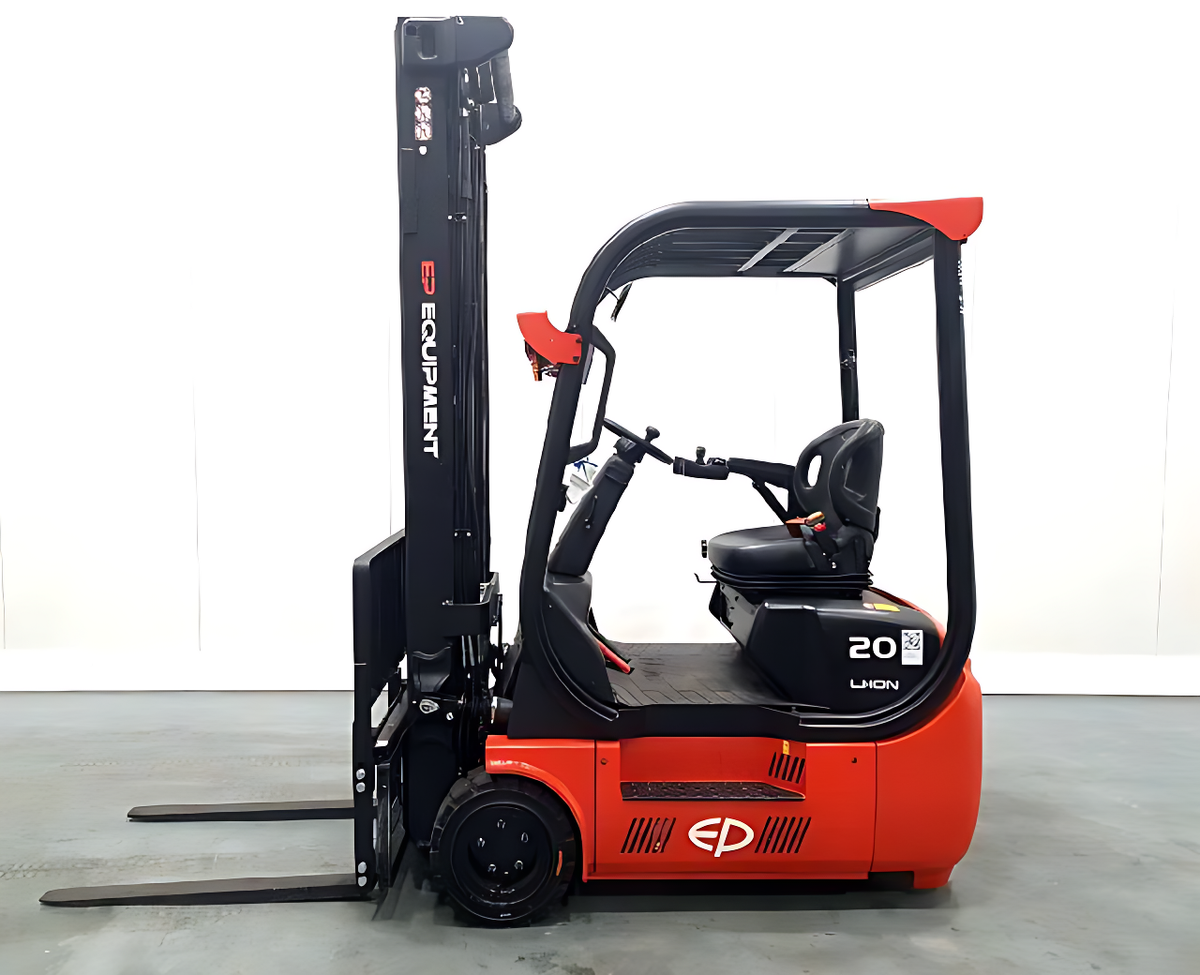

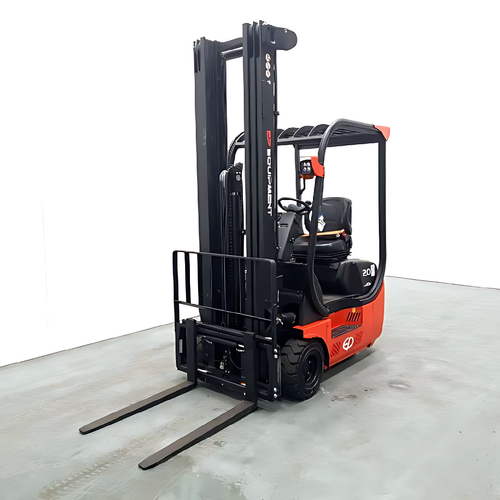

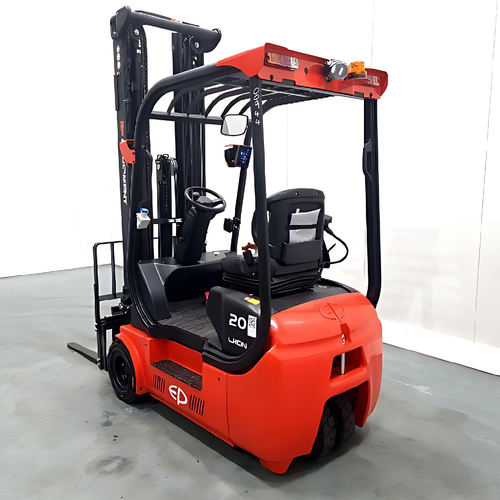

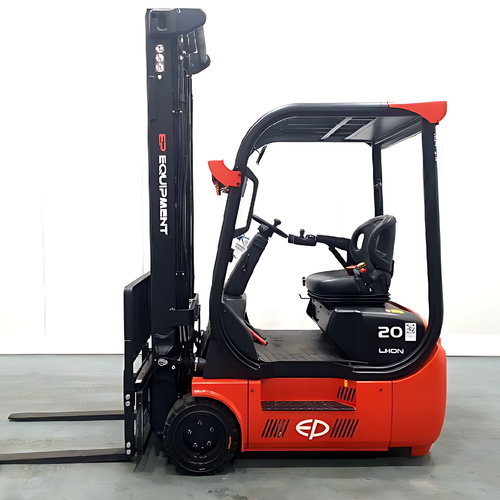

The EP TDL201 electric forklift offers 2000kg capacity, 3300–6000mm lift heights, and dual 5.4kW motors—ideal for indoor and outdoor operations.

More Information
Purchase From: £24,000.00 Exc. VAT

Lift Height:

3300mm (Duplex Mast)
4800mm (Triplex Mast)
6000mm (Triplex Mast)
01600 800 800 WhatsApp Email

The TDL series is the step-forward generation of EP’s premium class, to facilitate productive operations and increase driving comfort. The TDL series extends the modern and streamlined appearance of L2 series. This truck also inherits EP’s in-house lithium technology, 5.4kW*2 dual drive technology and mature components, delivering powerful and constant performance to various transportation needs.

Premium 3-Wheel Li-ion Counterbalance Forklift

Designed specifically around a compact 48V Li-ion battery system.
Provides high performance with low maintenance and maximum energy efficiency.

Dual 5.4 kW AC Drive Motors = Constant High Power

Two 5.4 kW AC traction motors deliver strong acceleration & gradeability.


Maintains consistent performance throughout the shift thanks to Li-ion power + opportunity charging.

Hydraulic Steering System for Higher Precision

More responsive, predictable, and accurate steering.
Lower maintenance cost vs. EPS/hydraulic-hybrid systems.

Ergonomic & Spacious Operator Compartment

Enlarged legroom and improved control layout.
Adjustable steering wheel + comfortable bucket seat.
Excellent visibility and comfort for long shifts.

Premium Electromagnetic Joystick Option

Palm-sized joystick houses all hydraulic controls.
Enables precise mast + fork control with minimal operator effort.
Ideal for high-productivity environments.

Premium Electromagnetic Joystick Option

Palm-sized joystick houses all hydraulic controls.
Enables precise mast + fork control with minimal operator effort.
Ideal for high-productivity environments.

High-Resolution, Top-Mounted LCD Display

Shows:

  • Speed
  • Battery status
  • Working hours
  • Miles driven
  • Parking status

    This placement reduces neck strain and improves situational awareness.

Integrated 48V Charger (16A Plug)

Standard 48V/50A on-board charger.
Optional fast chargers: 48V/150A or 48V/200A.

Easy Cabin Installation Thanks to One-Piece Frame

Optimised chassis allows fast installation of cabins (optional).
Makes weather protection upgrades simple and cost-effective.

Manufacturer

EP Equipment

Model

TDL201

Fuel Type

Electric — 48V Li-ion (405Ah)

Side Shift

Optional:

  • Built-in sideshifter
  • External sideshifter

    Note: Subtract 200 kg from rated capacity when using side shifter.

Capacity

2000 kg

Lift Height

3000 mm (standard mast)

Mast Type

2-Stage Standard Mast (3000 / 3600 / 4000 mm)
3-Stage Free-Lift Mast (4500–6000 mm)

Health & Safety

Electromagnetic service brake
Electromagnetic parking brake
OPS system (standard)
LED front lamps (standard)

Optional:
LED rear lights
Warning lamp
Blue safety lights (multiple configurations)
Area warning lamps (optional red)
Rear-view mirrors (1 or 2)
Premium/CE seat options with seatbelt logic switch
Height-optimized overhead guard
Full LCD display for system status monitoring

Additional Info

Drive motors: 2 × 5.4 kW
Lift motor: 11 kW
Travel speed: 15 / 16 km/h (laden/unladen)
Lift speed: 0.35 / 0.43 m/s
Lowering speed: 0.45 / 0.37 m/s
Gradeability: 15% / 17%
Turning radius: 1605 mm
Tyres: Solid rubber (non-marking optional)
Forks: 40 × 122 × 1070 mm (standard)
Aisle width: 3348–3485 mm
Battery weight: 207 kg
Noise level: 79 dB(A)

Charger options:
48V/50A internal (standard)
48V/150A or 48V/200A external (optional)
Optional cabin, heater, proportional lift system
Telematics optional
USB interface optional
TDL161-201_Brochure

Download our product specification for more in-depth product information

What is the TDL201 pallet truck designed for?

TDL201 pallet truck is designed for material handling tasks in warehouses, factories, and retail environments. It is used to lift and transport palletized goods efficiently, improving productivity and reducing manual labor.

What is the weight capacity of the TDL201 pallet truck?

The TDL201 pallet truck typically has a weight capacity of around 2,000 kg (4,400 lbs), making it suitable for heavy-duty applications where transporting large or heavy loads is required.

Is the TDL201 pallet truck suitable for use on uneven surfaces?

While the TDL201 is designed for use on smooth, flat surfaces, it can handle mild unevenness. However, for extremely rough terrain, specialized pallet trucks with larger wheels may be a better option.

How do I maintain the TDL201 pallet truck for optimal performance?

To maintain the TDL201 pallet truck, regularly inspect the wheels, forks, and hydraulic system for wear and tear. Lubricate the moving parts and ensure the hydraulic oil levels are sufficient. Always check the truck before use to ensure it is functioning properly and safely.

Hire a truck

Whether you're moving equipment, making deliveries, or tackling a big job—iLift offers reliable, well-maintained trucks ready when you are. Choose from flexible rental options with no hidden fees.

We make it easy: fast bookings, clear pricing, and a friendly team to help you pick the right vehicle.

Get on the road today—call now or book online in minutes!

Rent now

iLift Recommends

We Think You May Also Like

More information

Application.
The TDL series continues to deliver strong performance and boost productivity with its Li-ion heart and dual drive units. As a high-end Li-ion forklift truck, is suitable for a great variety of indoor and outdoor applications such as large docks, warehouses, side bay lorries and logistics centres.
